When it comes to electrical wiring, it's essential to have a good grasp of the different types of wires available. One such wire is the 10 3 wire with ground, which has gained popularity in recent years. This type of wire is commonly used for powering heavy-duty appliances and machinery in both residential and commercial settings. In this article, we will provide an in-depth guide on everything you need to know about 10 3 wire with ground.
What is 10 3 Wire with Ground?

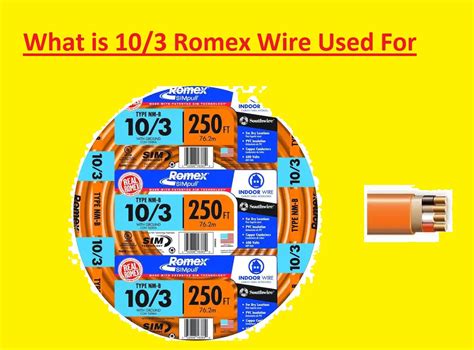

10 3 wire with ground, also known as NM-B 10/3, is a type of electrical wire that consists of three conductors and a ground wire. The three conductors are typically colored black, white, and red, and are made of copper. The ground wire is usually green and is also made of copper. The wire is rated for a maximum voltage of 600 volts and is suitable for both indoor and outdoor use.
One of the primary advantages of 10 3 wire with ground is its ability to handle high amperage loads. It's commonly used to power heavy-duty appliances like air conditioners, dryers, and water heaters, as well as machinery like compressors and pumps. It's also commonly used in commercial settings where heavy machinery is prevalent. In addition, the wire's ability to handle high amperage loads makes it an excellent choice for long-distance power transmission.
How to Install 10 3 Wire with Ground
Installing 10 3 wire with ground requires a bit of knowledge and experience with electrical wiring. It's always best to hire a licensed electrician to handle the installation, but if you're a DIY enthusiast, here are the general steps:
Step 1: Turn off the Power
Before starting any electrical work, always turn off the power at the main electrical panel. This ensures that you won't get electrocuted while working on the wires.
Step 2: Strip the Wires
Strip the wires by removing about ¾ of an inch of insulation from the ends of each wire. Use wire strippers to do this.
Step 3: Connect the Wires
Connect the black wire to the brass screw on the outlet or switch, the white wire to the silver screw, and the red wire to the other brass screw. Connect the ground wire to the green screw. Make sure all the connections are tight and secure.
Step 4: Test the Circuit
After completing the installation, turn the power back on and test the circuit using a voltage tester. This ensures that the wires are connected correctly and there are no electrical faults.
Benefits of 10 3 Wire with Ground
There are several benefits of using 10 3 wire with ground:
1. High Amperage
As mentioned earlier, 10 3 wire with ground can handle high amperage loads, making it suitable for heavy-duty appliances and machinery.
2. Long-Distance Power Transmission
The wire's ability to handle high amperage loads makes it an excellent choice for long-distance power transmission. It reduces power loss and ensures that the power reaches its intended destination.
3. Versatility
10 3 wire with ground is versatile and can be used both indoors and outdoors. It's suitable for residential and commercial settings.
Conclusion
10 3 wire with ground is an essential wire for powering heavy-duty appliances and machinery. It can handle high amperage loads, making it an excellent choice for long-distance power transmission. When installing 10 3 wire with ground, always turn off the power, strip the wires, connect the wires, and test the circuit. If you're unsure about the installation process, hire a licensed electrician to handle the work for you.
