When it comes to electrical wiring, it is crucial to understand the importance of choosing the right wire size for your specific needs. One of the most common wire size requirements is for 220v 30 amp circuits. This type of wiring is typically used for large appliances such as dryers, electric ranges, and air conditioning units. Choosing the wrong wire size can lead to various issues such as overheating, fires, and even electrical shock. In this article, we will discuss the importance of using the correct wire size and provide helpful tips for choosing the right 220v 30 amp wire size for your electrical project.
Why Wire Size Matters
Using the correct wire size is critical for ensuring your electrical system operates safely and efficiently. If the wire size is too small, it can lead to overheating and even melting of the wire insulation. This can cause fires and other dangerous electrical hazards. On the other hand, using a wire that is too large can be wasteful and unnecessary. It can also lead to increased costs and difficulty during installation.
Choosing the correct wire size for your electrical project is essential for several reasons. Firstly, it ensures that the current flows through the wire without any issues. Secondly, it helps to prevent overheating and other electrical hazards. Lastly, it ensures that the electrical system operates efficiently and effectively.
How to Choose the Right Wire Size
Step 1: Determine the Amperage
The first step in choosing the right wire size is to determine the amperage rating of the circuit. The amperage rating is the amount of current that the circuit can safely handle. For a 220v 30 amp circuit, the amperage rating is 30 amps.
Step 2: Calculate the Voltage Drop
The next step is to calculate the voltage drop. Voltage drop is the reduction in voltage that occurs as the current travels through the wire. To calculate the voltage drop, you will need to know the length of the wire, the amperage rating of the circuit, and the resistance of the wire.
Step 3: Select the Wire Gauge

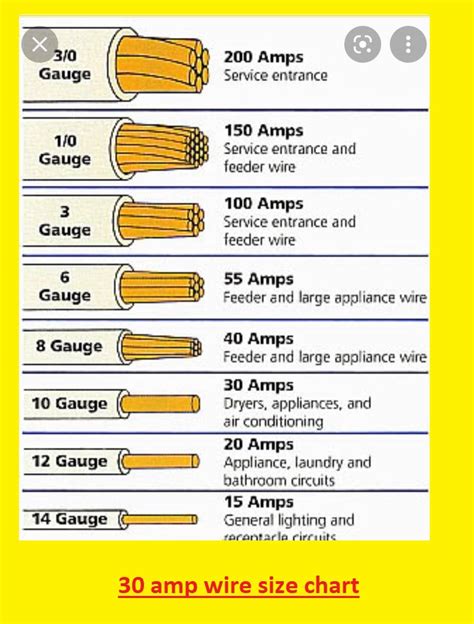

Once you have determined the amperage rating and calculated the voltage drop, you can select the appropriate wire gauge. The wire gauge is determined by the amperage rating, the length of the wire, and the voltage drop. For a 220v 30 amp circuit, the recommended wire gauge is 10 AWG.
Tips for Choosing the Right Wire Size
Tip 1: Consult a Professional
If you are unsure about which wire size to use for your specific project, it is always best to consult a professional electrician. They can help you determine the correct wire size and ensure that your electrical system is safe and up to code.
Tip 2: Use a Wire Size Calculator
A wire size calculator is a helpful tool that can assist you in determining the correct wire size for your project. There are several online calculators available that can help you determine the correct wire gauge based on the amperage rating and length of the wire.
Tip 3: Consider the Environment
When choosing the wire size, it is important to consider the environment in which it will be installed. If the wire will be exposed to extreme temperatures, moisture, or other harsh conditions, you may need to choose a wire with a higher temperature rating or special insulation.
Conclusion
Choosing the right wire size is critical for ensuring the safety and efficiency of your electrical system. When selecting the wire size for a 220v 30 amp circuit, it is important to consider the amperage rating, voltage drop, and wire gauge. By following these tips and consulting with a professional if necessary, you can ensure that your electrical project is safe, efficient, and up to code.
